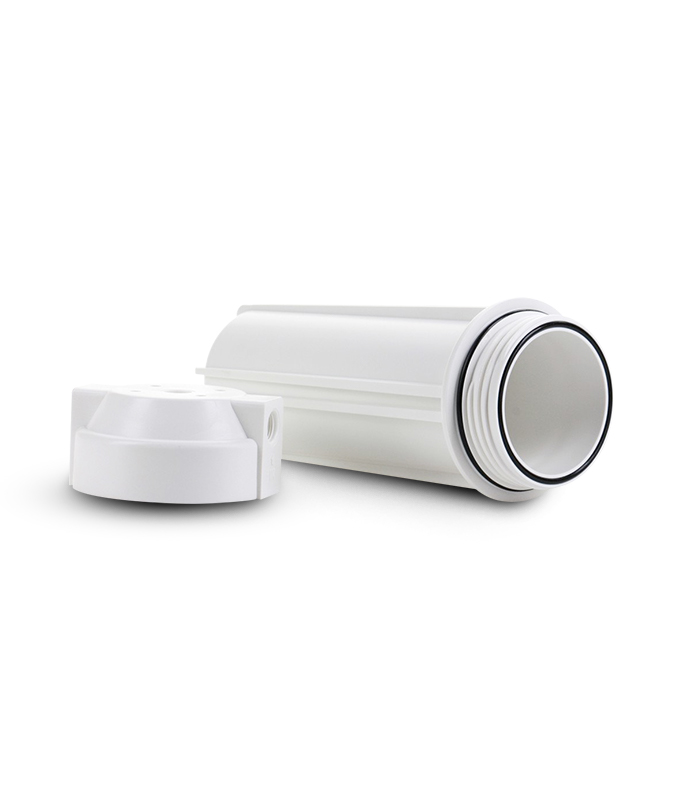

10" Standard Filter Housings

10″ Std Housing 1/4 inch port

R150.42

SKU: HOU10 Categories: ,

Description

10″ Standard Filter Housings are manufactured of durable polypropylene or clear Styrene-Acrylonitrile (SAN). These housings are available in 10″ lengths, while the caps are available with 1/4″ or 1/2″ NPT connections.

Opaque 10″ Standard filter housings, molded from rugged reinforced polypropylene, offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications. These applications include under sink and countertop residential filtration, pre- and post-reverse osmosis filtration, recreational vehicle filtration, food service, and humidifying systems.

Clear Flat Cap Slim Line housings offer on-site examination of flow, performance, and cartridge life. They are also ideal for a variety of applications.

FEATURES/BENEFITS

  • Slim design reduces the space required for installation without sacrificing capacity
  • Available in 10″ length
  • Available in clear or opaque sumps
  • Leak-proof seal

SPECIFICATIONS Of The 10″ Standard Filter Housings

  • Housing – Polypropylene (opaque) or Styrene Acrylonitrile (clear)
  • Cap – Reinforced Polypropylene
  • Button Assembly – 300 Series stainless steel, EPDM, and polypropylene
  • O-Ring – Buna-N
  • Temperature Rating – 40-125°F (4.4-51.7°C)
  • Maximum Pressure – 125 psi (8.6 bar)

SPECIFICATIONS AND PERFORMANCE Of The 10″ Standard Filter Housings

PART # DESCRIPTION MAXIMUM DIMENSIONS INITIAL ∆P (PSI) @ FLOW RATE (GPM)
158739* 1/4″ #10 Flat Cap Slim Line White/White w/o PR 12.36″ x 4.63″ (314 x 118 mm) 1 psi @ 10 gpm (0.07 bar @ 38 Lpm)
158784 1/4″ #10 Flat Cap Slim Line White/Clear w/o PR 12.36″ x 4.63″ (314 x 118 mm) 1 psi @ 10 gpm (0.07 bar @ 38 Lpm)
158785 1/2″ #10 Flat Cap Slim Line White/White w/o PR 12.36″ x 4.63″ (314 x 118 mm) 1 psi @ 10 gpm (0.07 bar @ 38 Lpm)

ACCESSORIES

PART # DESCRIPTION
150539 SW-1A for Slim Line
158095 Viton #237 for Slim Line
158096 Silicone #237 for Slim Line
244047 SL-ZP Kit – Zinc Plated Bracket for Slim Line
357638 SL-SS – Stainless Steel Bracket ONLY for Slim Line
357644 SL-SS Kit – Stainless Steel Bracket for Slim Line
244046-00 SL-ZP – Zinc Plated Bracket ONLY for Slim Line
244627-02 Two-Housing System Bracket
